Benefícios
O Agitador IBC Tetra Pak® foi especialmente projetado para uso com embalagens IBC padrão da indústria. O agitador é posicionado com o auxílio de uma empilhadeira ou guindaste suspenso. O design exclusivo permite que o conteúdo do IBC seja agitado de forma consistente e independente do nível do líquido. A superfície do líquido permanece contínua, o que reduz o risco de entrada de ar. As pás de mistura se abrem automaticamente dentro do recipiente, e uma corrente, posicionada abaixo delas, garante a mistura até o fundo do IBC, mesmo em baixos níveis de enchimento.
Capacidade:
Projetado para IBC padrão com capacidade de 1000 litros.
Aplicações:
Compatível com líquidos de até 200 cP de viscosidade, tais como:
- Concentrados de alimentos
- Aromas e sabores líquidos
- Sucos
- Compostos químicos líquidos
Gentle product treatment with unrivalled efficiency
- Exceptionally gentle and efficient treatment thanks to auto-extending mixer blades.
- Extremely fast mixing result despite slow rotation of the mixing blades. Mixes four times faster than conventional agitators.
- Hygienic and easy-to-clean design with no bearings or other parts than blades that have product contact.
- Highly reliable and long-life due to slow mixer blade rotation speed that causes less wear on the motor and moving parts.
- Low maintenance – besides the motor the agitator is maintenance-free.
Características
Auto-extending mixer blades
Large blades for high-efficiency mixing
The unique design of Tetra Pak® Agitator IBC enables large blades to enter the narrow IBC opening in an adjacent position. Once the agitator is switched on and centrifugal force is applied, the blades separate automatically inside the liquid. Their large surface area permits a slow agitation speed that mixes the liquid gently yet up to four times faster than conventional agitator models.
Stainless steel chain on mixer blades
Accurate mixing assured even at low fill level
A chain can be connected for low filling levels. The chain is suspended beneath the mixer blades and ensures an accurate mixing at the base of the container. The chain is disconnected during normal operation.
Mixer blade status indicator
Monitor agitator status at all times
A red stripe shows on the agitator frame to communicate that the agitator has ceased operation or has yet to start. This keeps the operator informed of current mixing status at all times.
Opções
Frequency converter
Simply control the rotation speed
Frequency converter to adapt mixing rotation speed depending on product type and liquid volume.

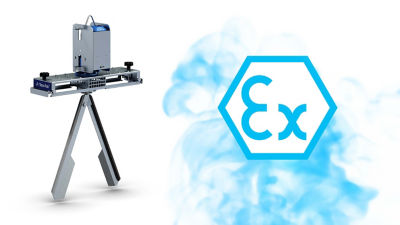

Explosion Protection (ATEX zone 22)
Make it ATEX safe
Modifications can be made so that the agitator complies with ATEX zone 22.

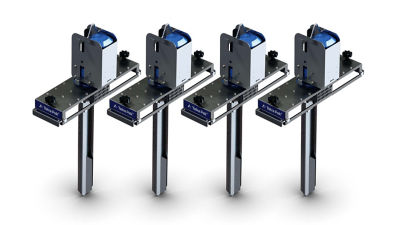

Storage Support
Space-saving and easy storage
Storage support for storing four agitators when not in use or suitable for manual cleaning.

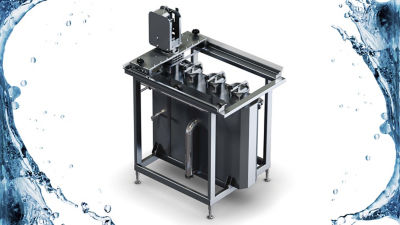

CIP Station
Place and clean
CIP station for four agitators for a fully hygienic and automatic cleaning.
